Prius Hybrid Battery Repair in Norman, OK: Diagnosing P0A80 and Corrosion

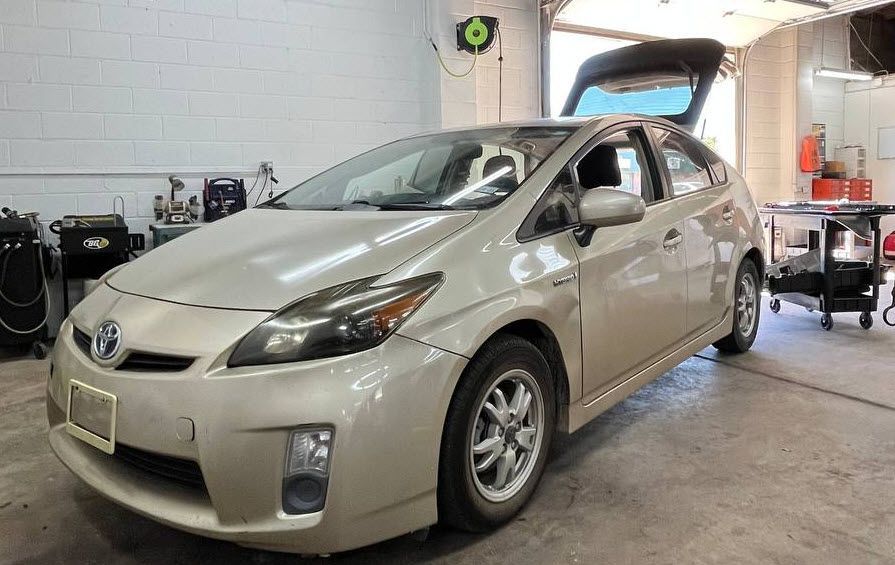

A 2010 Toyota Prius came to PROFIX Auto Repair in Norman, Oklahoma with hybrid-system warning lights and a stored P0A80 fault. Rather than immediately replacing the entire high-voltage battery, we diagnosed and opened the existing battery assembly, found extensive corrosion in its electrical connections and sensing system, and repaired the original battery.
A P0A80 Code Was Only the Beginning
When this Prius arrived, diagnostic information stored by the vehicle pointed toward a problem inside the high-voltage hybrid battery.
The stored P0A80 code included freeze-frame data showing Battery Block 5 at approximately 12.5 volts, while the other 13 battery blocks were approximately 14 volts when the fault occurred. That difference was significant enough for the hybrid control system to recognize a problem.
But there was an important complication.
When we tested the Prius in the shop, that same imbalance was no longer present. All 14 battery blocks were reading very close together, approximately 16.27 to 16.34 volts.
That meant we had good reason to keep diagnosing before condemning the entire hybrid battery.

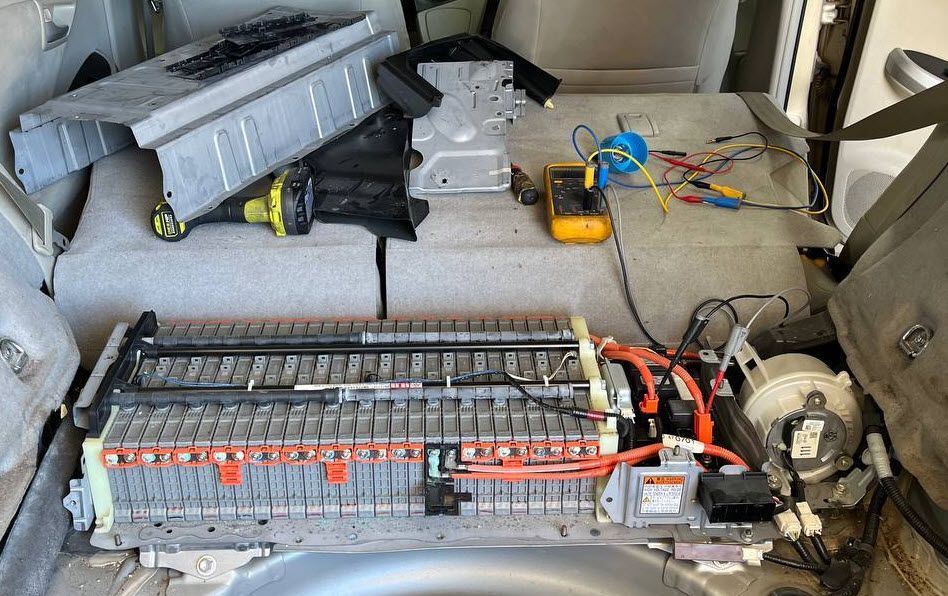

Opening the Prius Hybrid Battery for Further Diagnosis
To find out what was happening inside the battery, additional disassembly was necessary.
The Prius high-voltage battery is located beneath the rear cargo and seating area. Accessing it requires removing interior components and covers before the battery assembly itself can be inspected and tested.
Once opened, the individual battery modules did not show obvious swelling or expansion. That was important because the battery's physical condition did not immediately match what we might expect from a straightforward failed module.
The electrical connections told a different story.

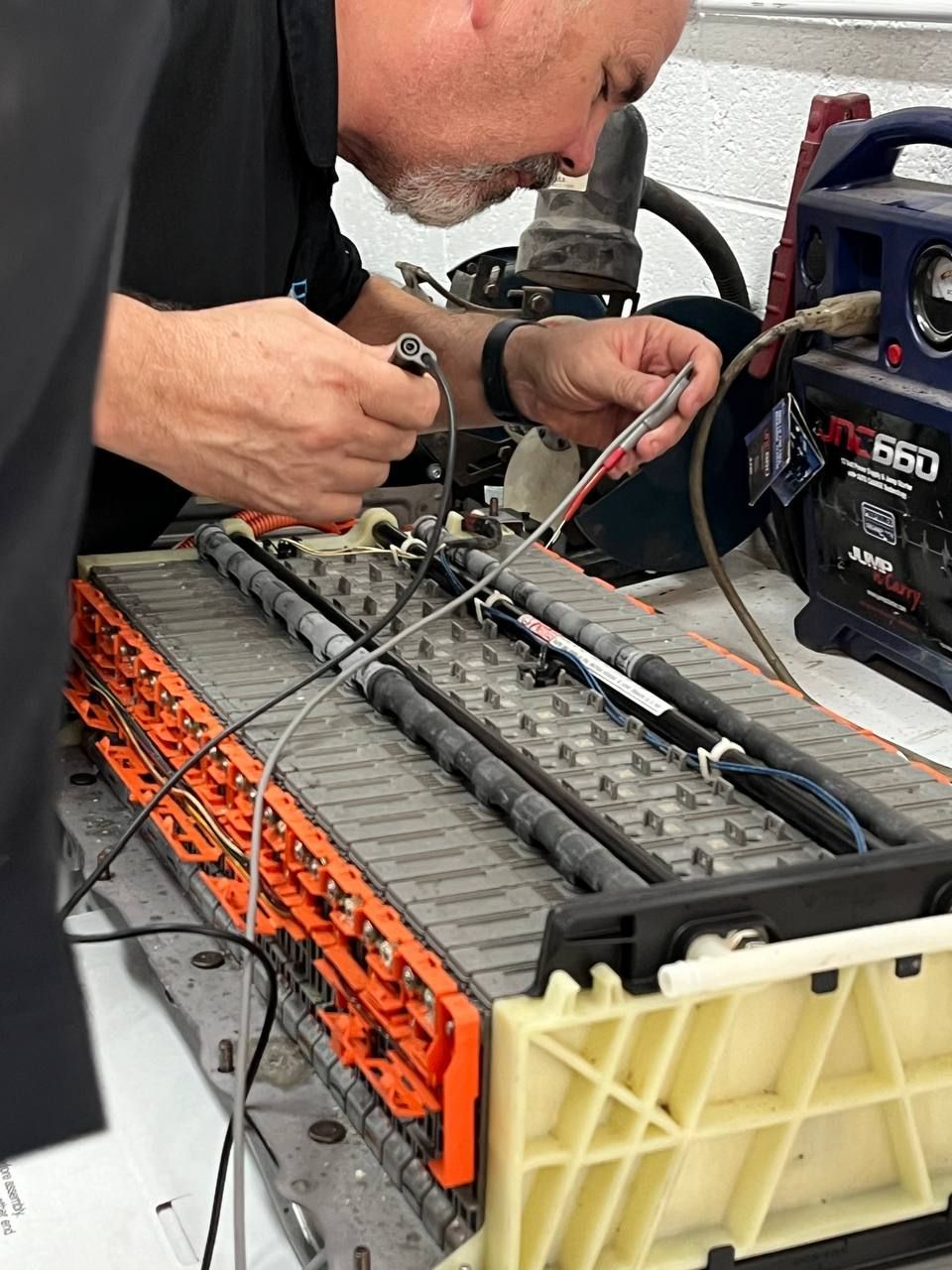

Testing the Battery Instead of Guessing
An HV battery assembly contains much more than a row of battery modules. Connections between the modules, voltage-sensing circuits, wiring and related hardware all have to work correctly for the vehicle to know what the battery is actually doing.
That mattered on this Prius because the original freeze-frame data showed one battery block dramatically lower than the others, but our current measurements showed the blocks closely balanced.
So we continued testing the battery internally rather than treating the stored code as a parts order.

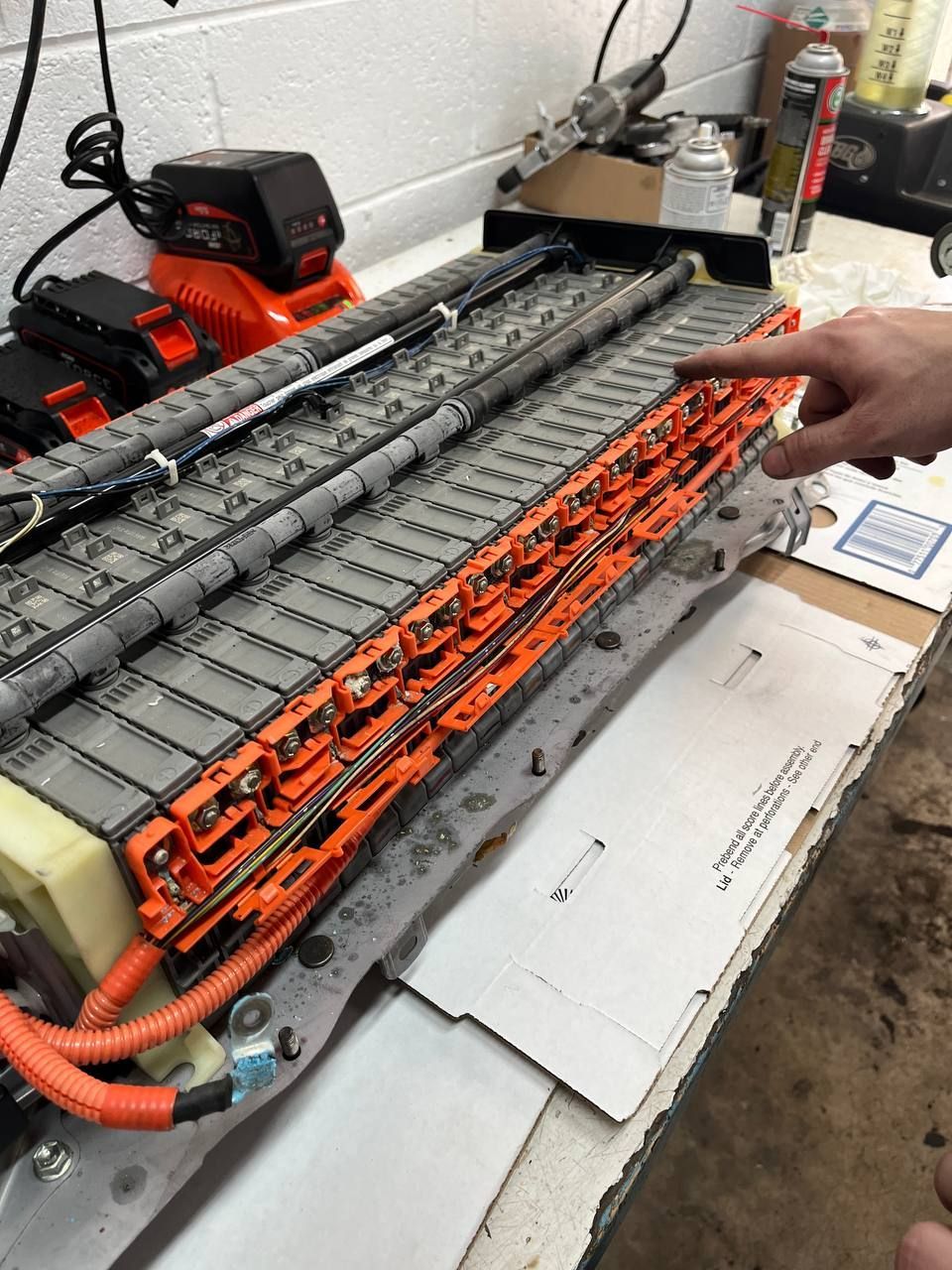

The Problem: Extensive Corrosion Inside the Battery
With the battery opened, the problem became much clearer.
There was corrosion across the battery terminal connections, along with corrosion affecting the voltage-sensing connections. Those circuits are responsible for reporting battery-block voltage information back to the vehicle.
In this case, the corrosion was capable of producing an incorrect voltage reading — explaining why the vehicle had recorded Battery Block 5 at a much lower voltage even though the battery blocks tested closely balanced when we inspected them.
This is exactly why diagnosing a Prius hybrid battery problem can involve more than reading a trouble code.
Prius Hybrid Battery Repair — Not a Battery Rebuild
There is an important distinction here.
We repaired this Prius hybrid battery. We did not rebuild it.
The customer's original battery assembly was retained. We weren't installing a remanufactured battery or assembling a replacement pack from used battery modules.

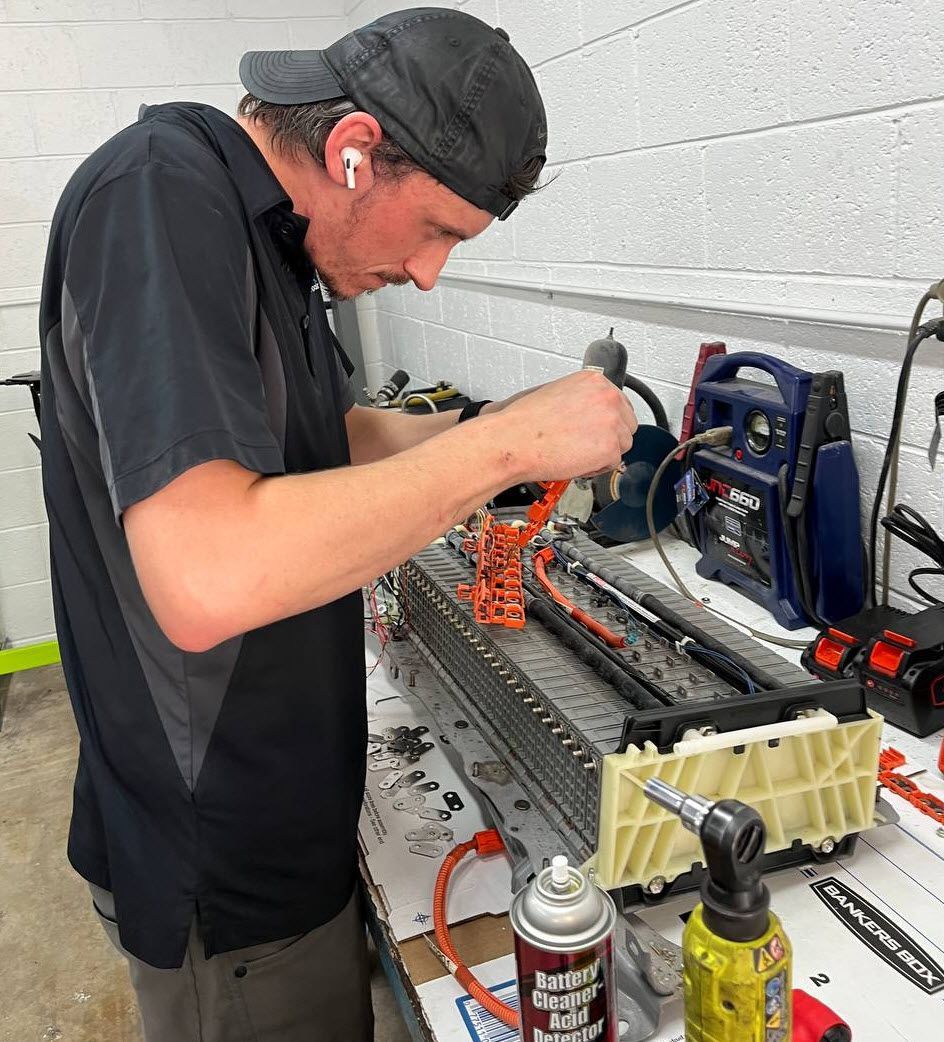

Instead, the existing battery was disassembled so the corrosion and damaged electrical connections could be addressed directly.

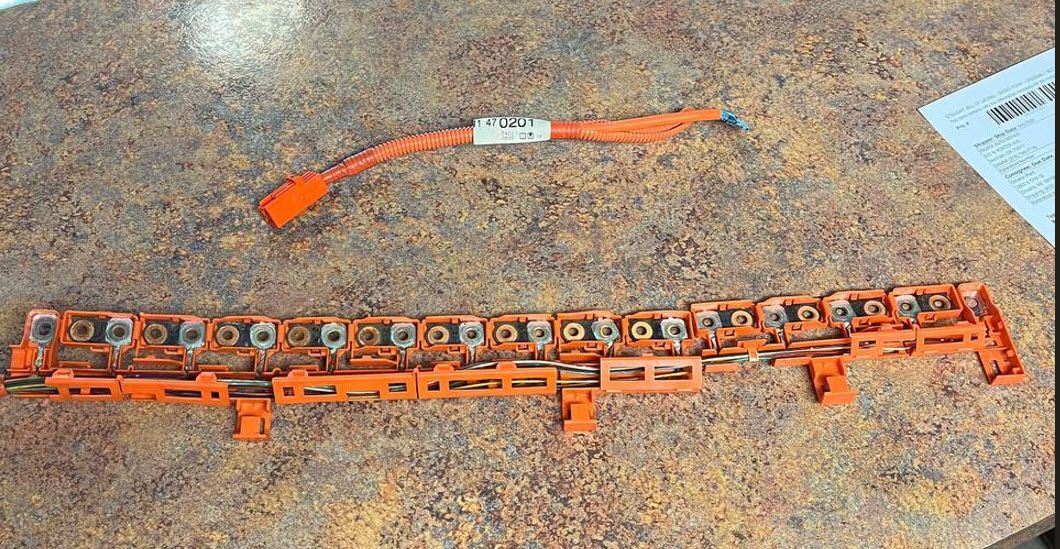

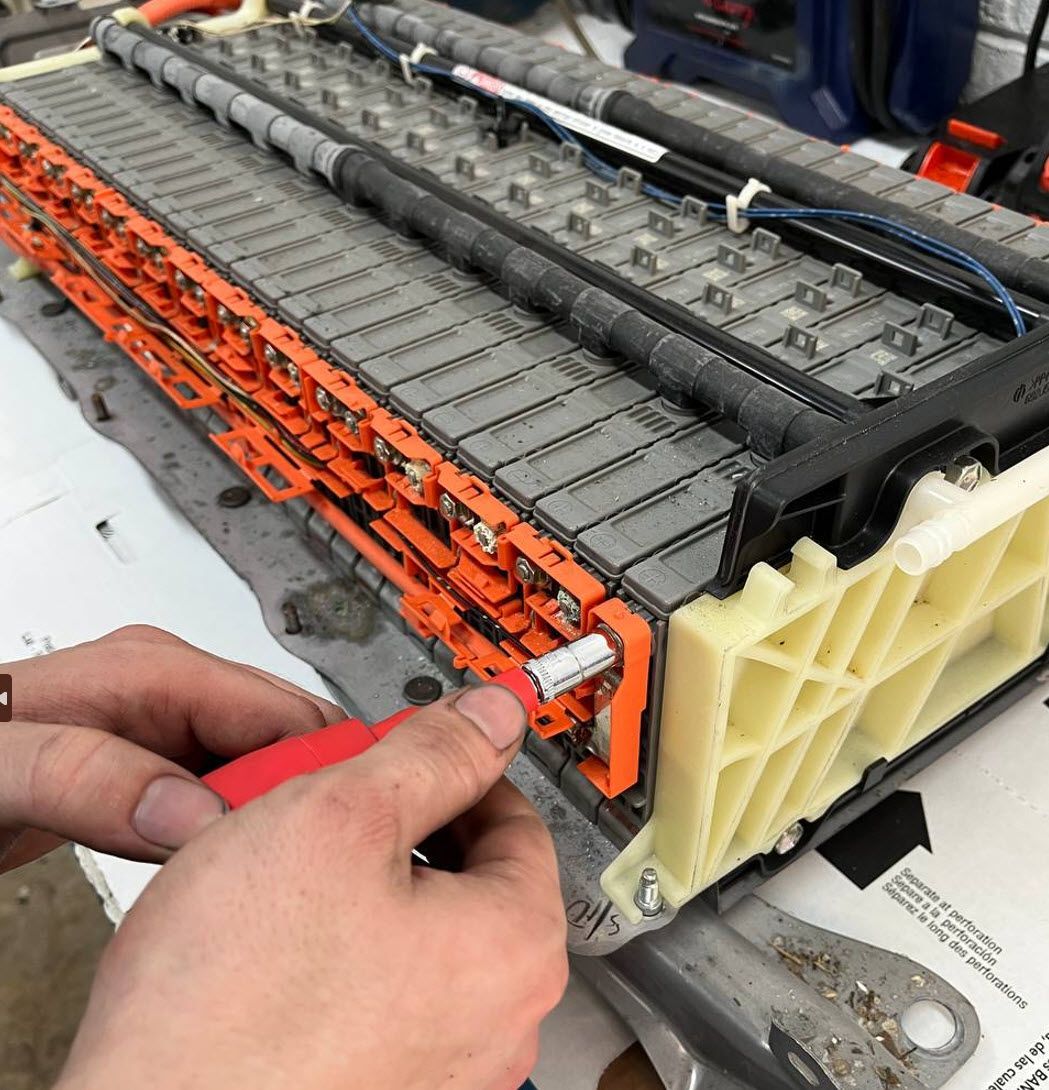

That included servicing and replacing corroded terminal connections and related hardware, along with replacement of affected electrical components including the battery block-sense wiring harness, bus bars, and high-voltage negative cable.
What Prius Hybrid Battery Repair Actually Involves
This type of repair is considerably more involved than clearing a fault code.
The battery has to be accessed, electrically isolated, opened and inspected. Connections must be removed so corrosion can be cleaned from the affected areas, damaged components can be replaced where necessary, and the assembly can then be put back together and tested.
That is also why we don't assume every P0A80 Prius needs the same repair.
The diagnostic process determines what is actually wrong with that particular battery.
Repairing the Existing Battery vs. Replacing It
We also gave the owner another option: replacing the entire battery with a brand-new Toyota OEM hybrid battery.
That is sometimes the appropriate answer, and we wanted the customer to have that choice.
In this case, however, the customer chose to repair the existing battery.
We were also clear about the limitation of doing so. This is still an older battery assembly. Correcting corrosion and electrical faults can restore proper operation, but repairing those problems does not magically turn the existing battery modules into new ones or guarantee their future lifespan.
That is an important distinction when deciding whether Prius hybrid battery repair or complete battery replacement makes more sense for a particular car.
Does Every P0A80 Prius Need a New Hybrid Battery?
No two battery faults should be assumed to be identical.
A Prius may have a genuine battery-module problem that makes replacement the better option. Another may have corrosion, damaged connections, voltage-sensing problems or other issues that require a different repair.
The important part is determining why the hybrid system set the fault before deciding what to replace.
This 2010 Prius is a good example. The stored diagnostic information initially showed what looked like a major battery-block voltage imbalance. Further testing showed the battery blocks were currently balanced, and opening the battery revealed extensive corrosion affecting the electrical connections and sensing system.
That changed the repair considerably.
Prius Hybrid Battery Repair in Norman, Oklahoma
There are still plenty of older Toyota Priuses on the road, and a hybrid battery warning does not automatically mean the entire car is finished.
At PROFIX Auto Repair in Norman, we can diagnose Prius hybrid battery problems and, when the condition of the battery makes it appropriate, repair the existing high-voltage battery rather than automatically replacing the complete assembly.
For this Prius, that meant removing and opening the original battery, identifying the internal corrosion, servicing the affected connections, replacing damaged related electrical components, reassembling the battery and returning the existing assembly to service.
If your Prius has hybrid warning lights, a P0A80 code, battery-voltage faults or another high-voltage battery concern, you can book an appointment at either PROFIX Auto Repair location in Norman or send us a message through the contact form below.
