Why This 2022 Toyota Corolla Wouldn’t Start — And Why It Didn’t Need a Fuel Pump
This 2022 Toyota Corolla LE came to PROFIX Auto Repair in Norman, Oklahoma with a crank-no-start condition and a P1604 startability malfunction. Proper testing led us to the fuel-pump circuit, where we found that the pump itself was fine — three wires at the fuel-pump connector had been damaged by the access cover.
The Corolla Cranked, But It Wouldn’t Start
The customer’s concern was straightforward: the engine would crank, but the Corolla would not start.

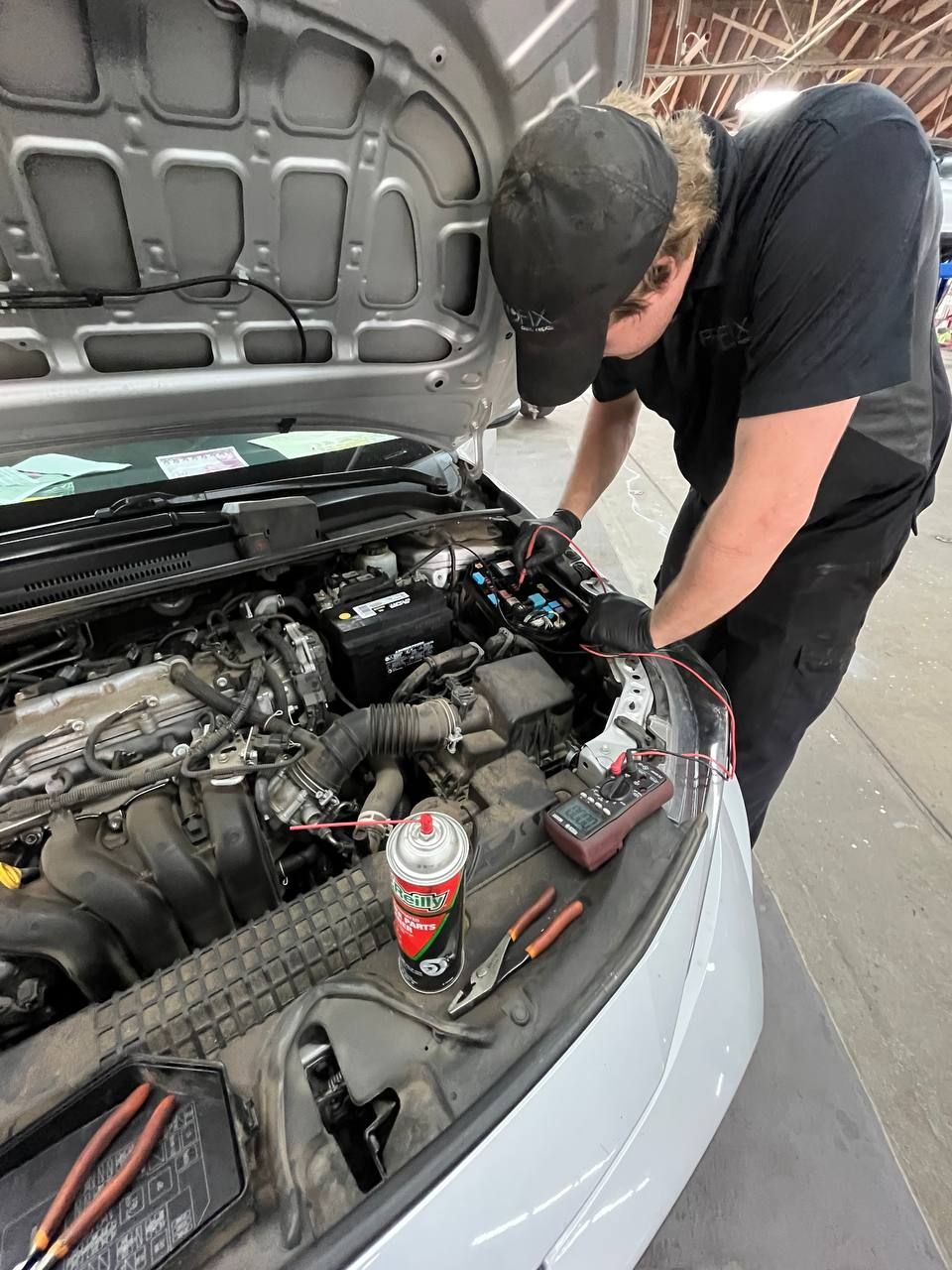

Our technician confirmed the no-start condition and scanned the vehicle for diagnostic trouble codes. The Corolla had stored P1604, a startability malfunction code.
That was useful information, but it wasn’t an answer by itself.
A trouble code identifies an area or condition that needs to be investigated. It does not automatically tell a technician which part has failed, and P1604 certainly does not mean, “Replace the fuel pump.”
The freeze-frame information associated with the code did not provide a useful lead, so the next step was to determine what the engine was missing.
A Quick Test Pointed Toward Fuel Delivery
One way to narrow down a crank-no-start is to determine whether the engine is capable of running when it is briefly supplied with another combustible source.

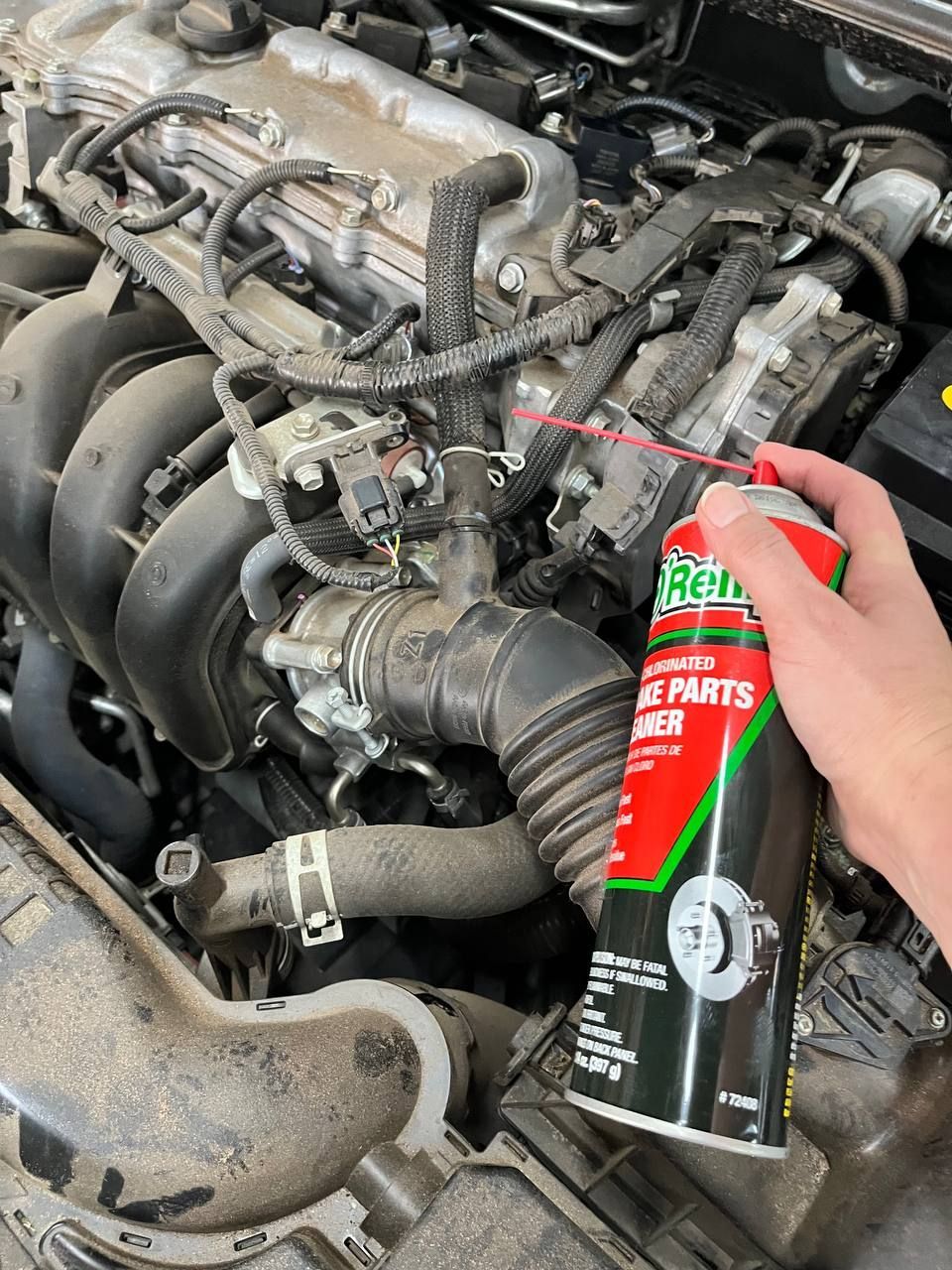

A small amount of brake cleaner was introduced into the intake while cranking the engine. The Corolla started and ran for a couple of seconds, then died again.
That was an important clue.
The engine was capable of firing, but it was not receiving the fuel it needed to continue running. Instead of guessing at a fuel pump, we now had a reason to investigate the vehicle’s fuel-delivery system and the electrical circuit supplying it.
Following the Problem to the Fuel Pump

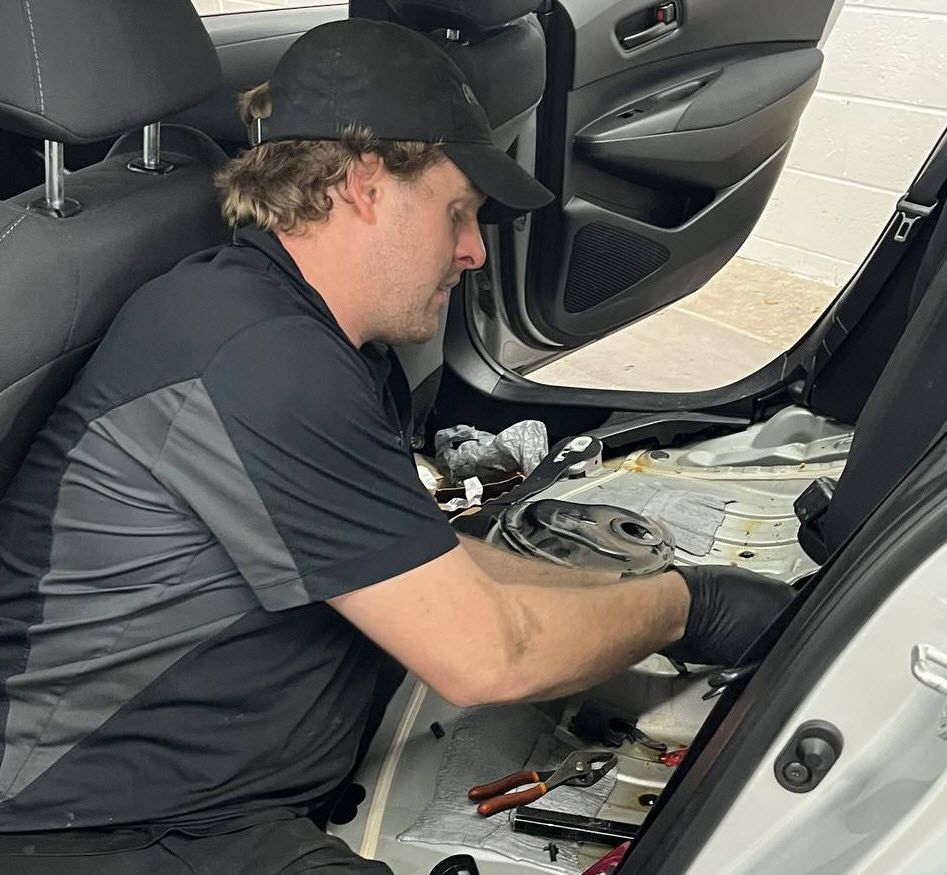

On this Corolla, the fuel-pump access area is located beneath the rear seat.
The rear seat cushion was removed so we could gain access to the pump and its electrical connections. This is where the diagnosis took a very fortunate turn for the customer.
There was nothing wrong with the fuel pump itself.
The Fuel-Pump Access Cover Had Damaged the Wiring

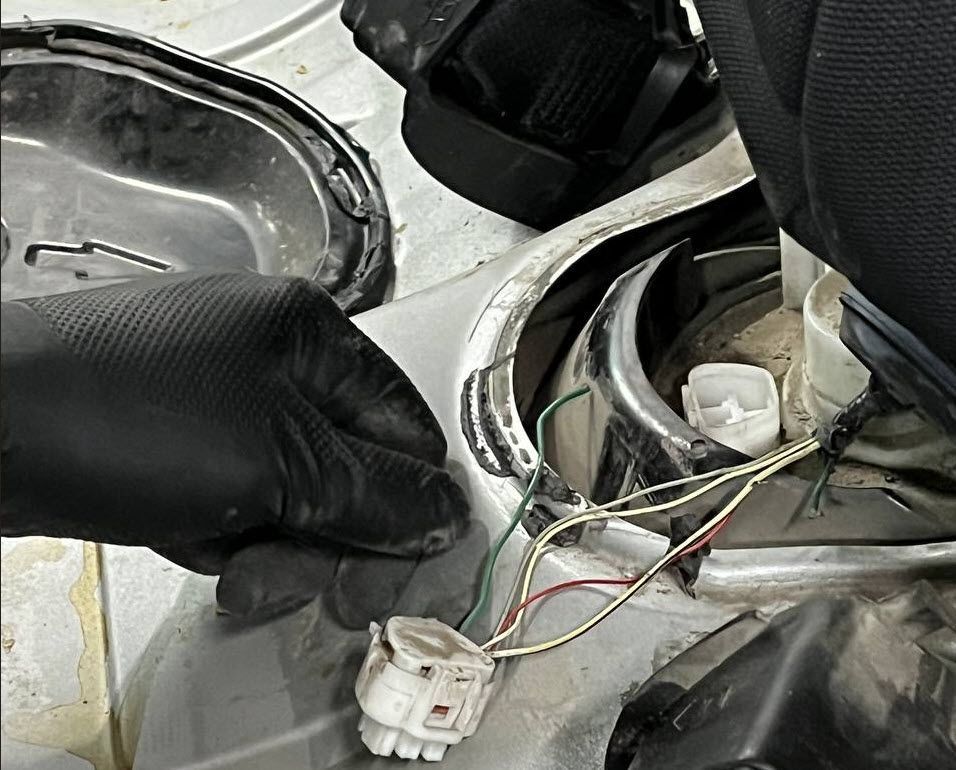

Once the access area was opened, the actual problem became visible.

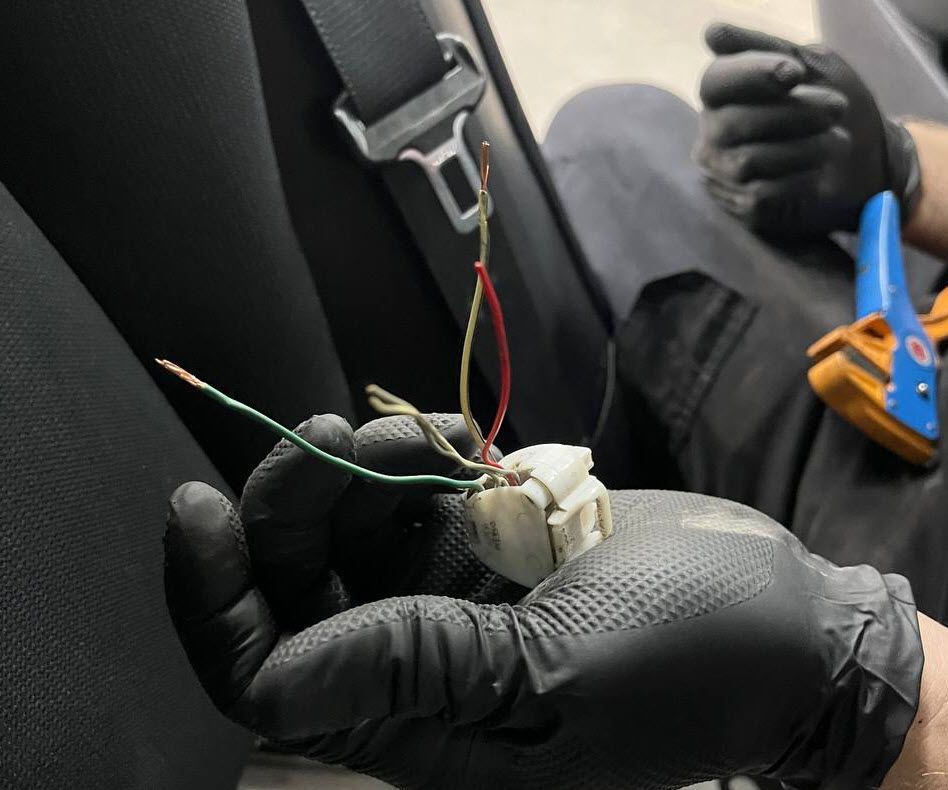

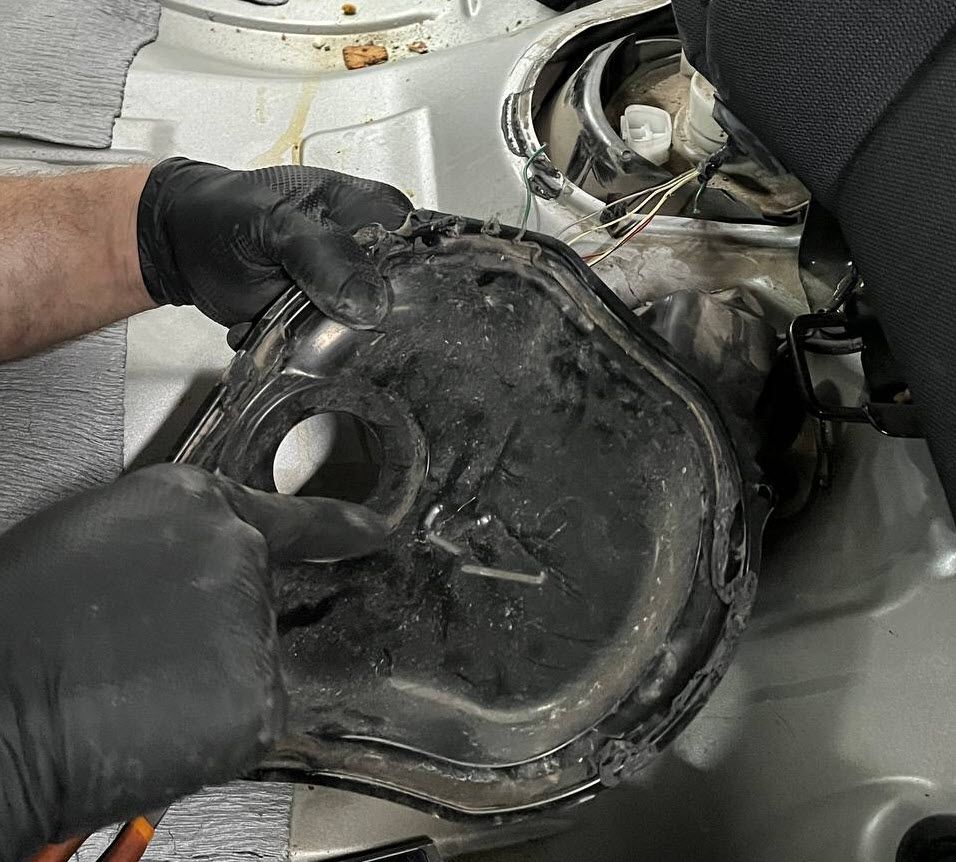

The fuel-pump access cover had caught and damaged the wiring running to the pump connector. Three wires had been severed.
That interruption in the circuit prevented the fuel pump from operating as needed for the engine to start.
This is also why replacing the fuel pump would not have solved the real problem. The pump wasn’t bad. The electrical path to it was.
And once the connector was pulled into view, the failure was hard to miss.
Repairing the Circuit Instead of Replacing the Pump
Before performing the permanent repair, reconnecting the damaged wiring allowed the vehicle to start. That confirmed we had found the cause of the no-start.
The correct repair was therefore not a new fuel pump.

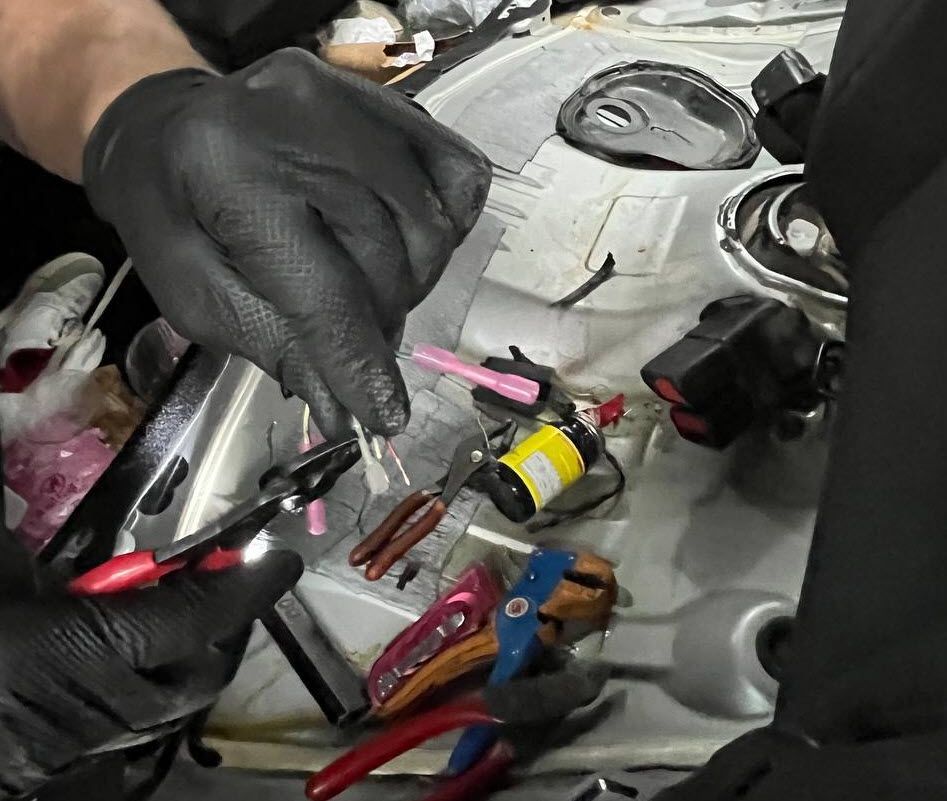

We repaired the three damaged wires, restored and secured the electrical connections, protected the repaired sections, and reassembled the fuel-pump access area.
Once the repair was complete, the Corolla started normally each time the key was turned. We also road-tested the vehicle and confirmed that it drove properly.
Why Proper Diagnosis Mattered on This No-Start
This job is a good example of why a vehicle that acts like it has a bad part does not necessarily have a bad part.
The Corolla would crank but would not start. Testing showed that the engine could run when temporarily supplied with a combustible source, which pointed us toward fuel delivery. From there, further inspection revealed the real failure: three damaged wires beneath the fuel-pump access cover.
Without that diagnostic process, it would have been easy to focus on the fuel pump itself.
Instead, the customer received the repair the vehicle actually needed and avoided the unnecessary expense of replacing a perfectly good fuel pump.
That is one of the biggest reasons we diagnose problems before recommending major components. The same symptom can have several possible causes, and finding the actual failure can make a very large difference in both the repair and the final cost.
A No-Start Doesn’t Always Mean a Major Repair
A vehicle that suddenly refuses to start can feel like the beginning of an expensive repair — but sometimes the actual cause is much smaller than the symptom suggests.
In this case, three damaged wires were enough to disable the fuel system and leave a 2022 Toyota Corolla unable to start.
Once those wires were properly repaired, the original fuel pump went right back to doing its job.
If your vehicle cranks but won’t start, starts intermittently, or has another problem that needs to be properly diagnosed, PROFIX Auto Repair can help. You can book online at either of our Norman locations or send us a message using the contact form below.
