Front AC Cold, Rear Not Cold? Real Diagnostic Story on a 2025 Ford F-350 in Norman
When the rear air conditioning isn’t performing like the front, it’s rarely just “low Freon.” At PROFIX Auto Repair in Norman, we dig deeper to fix the real problem.
We get it — nothing is more frustrating during an Oklahoma summer than turning on your truck’s air conditioning only to find the front is ice cold while the rear is barely blowing cool. That’s exactly what a local fire equipment company experienced with their brand-new 2025 Ford F-350 Super Duty.
At PROFIX Auto Repair in Norman, OK, our team is known for thorough diagnostics and honest repairs. Customers consistently praise us in reviews for taking the time to find the real issue instead of just adding refrigerant and sending them on their way.
The Customer’s Concern
The truck would blow strong cold air from the front vents, but the rear vents were noticeably warmer. The customer suspected a simple low refrigerant issue, which is a common assumption.

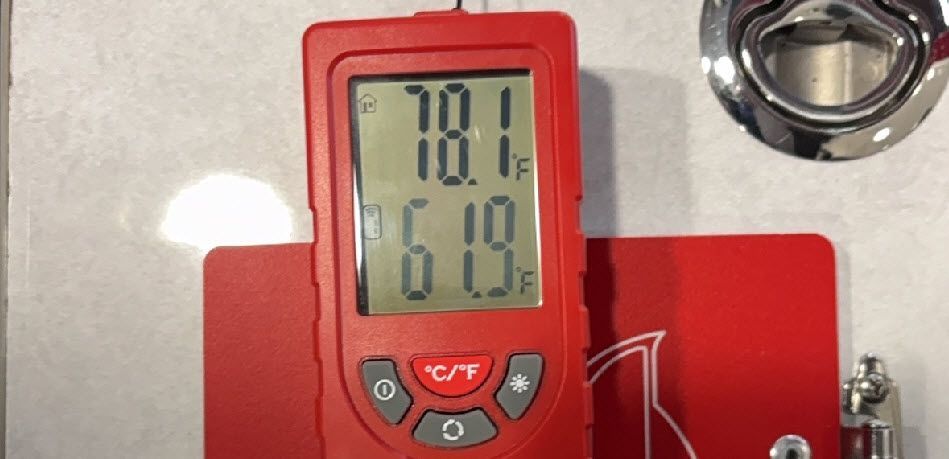

Using our Power Probe to measure vent temperatures during initial diagnostics — front vents were cold, but rear vents were significantly warmer.
Proper Diagnostics Make All the Difference
Instead of immediately performing an A/C recharge, our technicians did a full system evaluation:
- Used power probe transmitters to monitor front and rear vent temperatures
- Performed a complete A/C performance test
- Used a thermal camera to inspect the system (this revealed a critical clue)
- Checked wiring diagrams and traced voltage drop on the control circuit

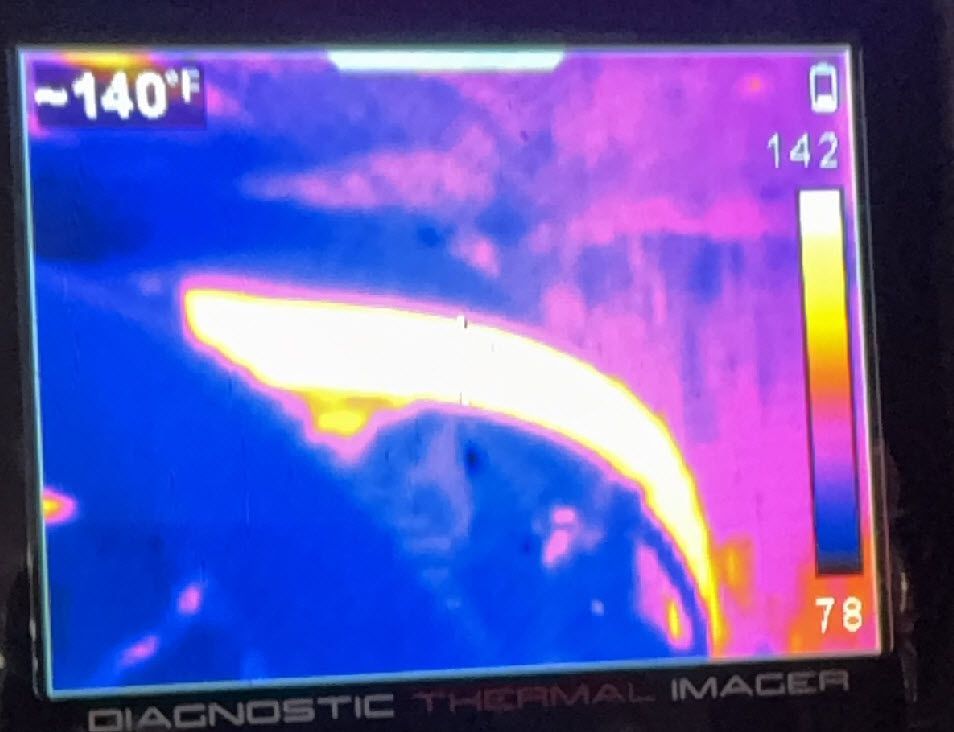

Thermal imaging revealed a hot spot in the heater control valve circuit, pointing us to the electrical issue causing the rear A/C problem.
The thermal imaging clearly showed excessive heat in the heater control valve circuit. After further testing, we found a poorly crimped wire and a bad connection on the main control board. This electrical issue was preventing proper control of the rear A/C blend door.
We carefully repaired the wiring (soldered the connection for reliability), then performed a full A/C service — evacuating the system, checking for leaks, and recharging with the correct amount of R134A.

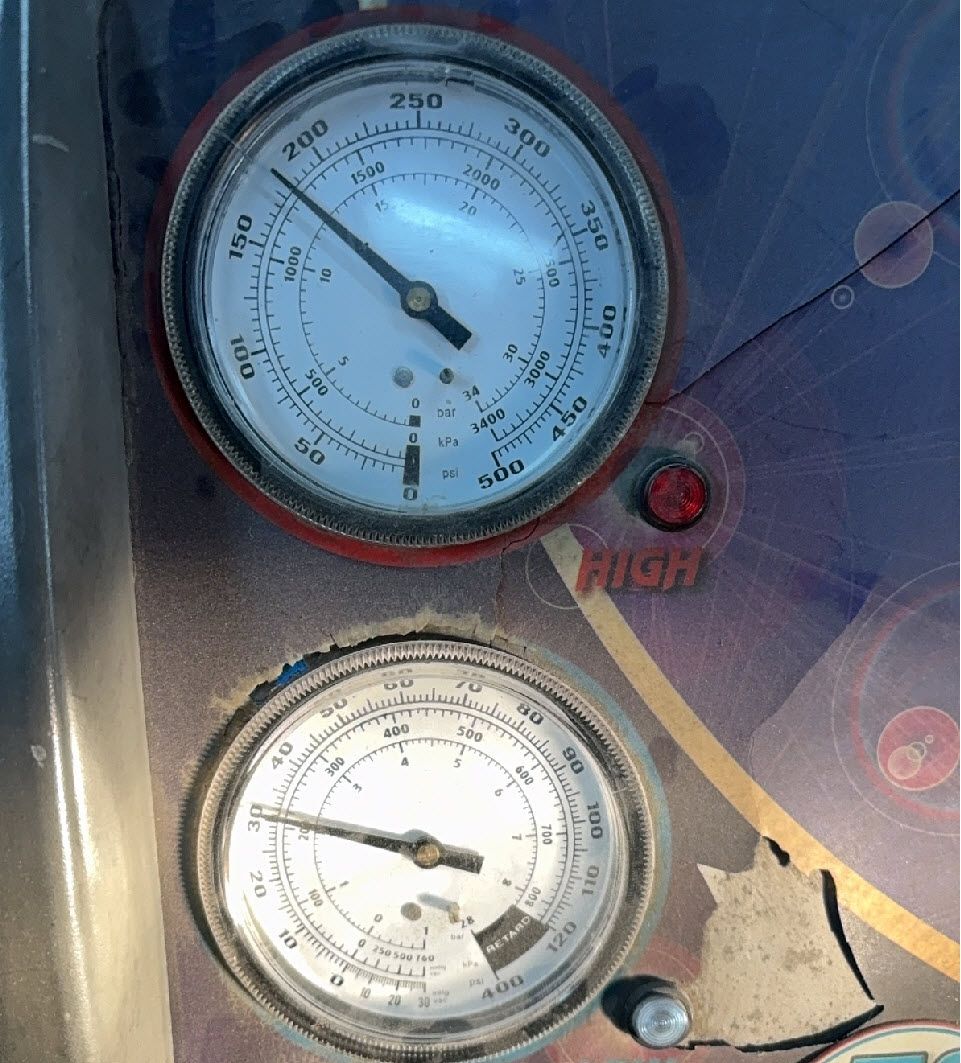

"A/C manifold gauges during system evacuation and recharge after the wiring repair was completed."

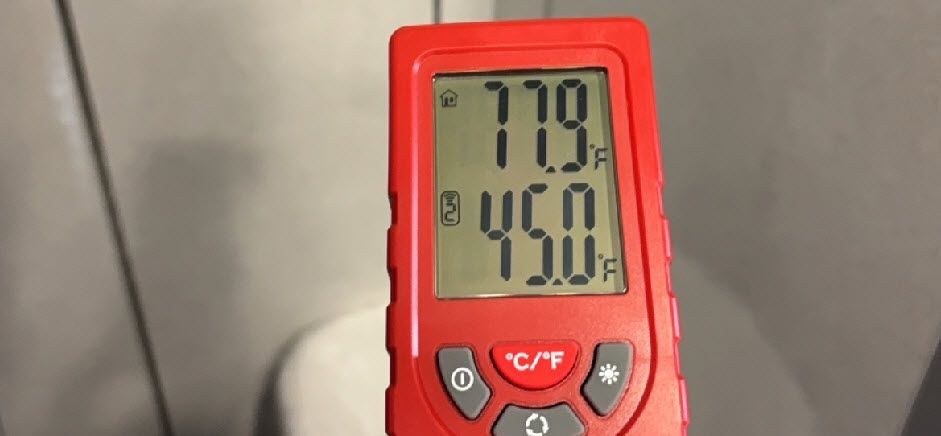

After the repair — excellent cold air from both front and rear vents. Final readings showing 45°F, perfect for Oklahoma summer heat.
The Result
After the repair, both front and rear vents were delivering excellent cold air — a dramatic improvement the customer was very happy with. The truck is now comfortable for the whole crew, even on the hottest Oklahoma days.
This is a perfect example of why we’re not a “parts cannon” shop. A quick recharge would have given temporary relief at best. Finding and fixing the root electrical cause ensures the repair lasts.
Key Takeaways
- Uneven front/rear A/C performance is often an electrical or control issue, not just low refrigerant
- Proper diagnostics using tools like thermal cameras and power probes save time and money long-term
- New vehicles can still have wiring and connection problems
- Thorough repairs give you confidence your A/C will keep performing in Oklahoma heat
