Complex A/C Control Issues on a 2025 Ford F-450: Why Thorough Diagnostics Matter
When heat and A/C controls don’t behave as expected, it’s rarely a simple fix. At PROFIX Auto Repair in Norman, we take the time to find the real problem.

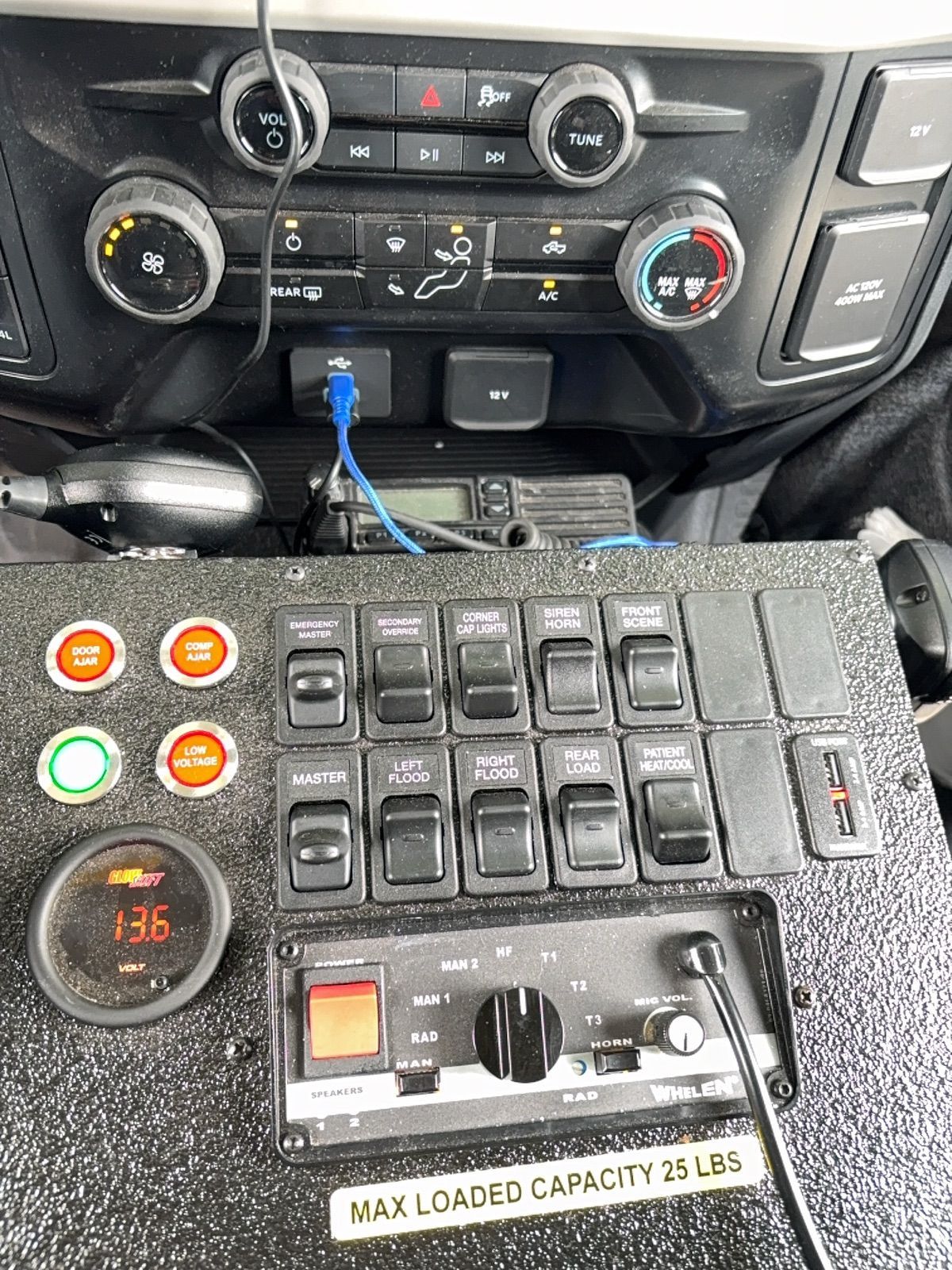

We get it — when your work truck’s heating and cooling system starts acting strangely, it creates real problems, especially in Oklahoma’s extreme temperatures. A local fire equipment company brought in their 2025 Ford F-450 Super Duty with an unusual issue: the rear heat would stay on even when turned off, affecting front cab comfort.
At PROFIX Auto Repair in Norman, OK, our team is trusted by local businesses and families for our detailed diagnostic approach and honest repairs. Customers regularly highlight in reviews how we solve complex problems the right way.
The Customer’s Concern
The truck had two noticeable issues:
- When running heat in the rear cab/box area, turning it off would also turn off heat in the front cab (which should stay independent).
- USB ports in the cab console and rear were only “ignition hot” instead of constant power.
Proper Diagnostics in Action
Our technicians didn’t just assume it was a simple actuator or low refrigerant problem. They performed in-depth testing:

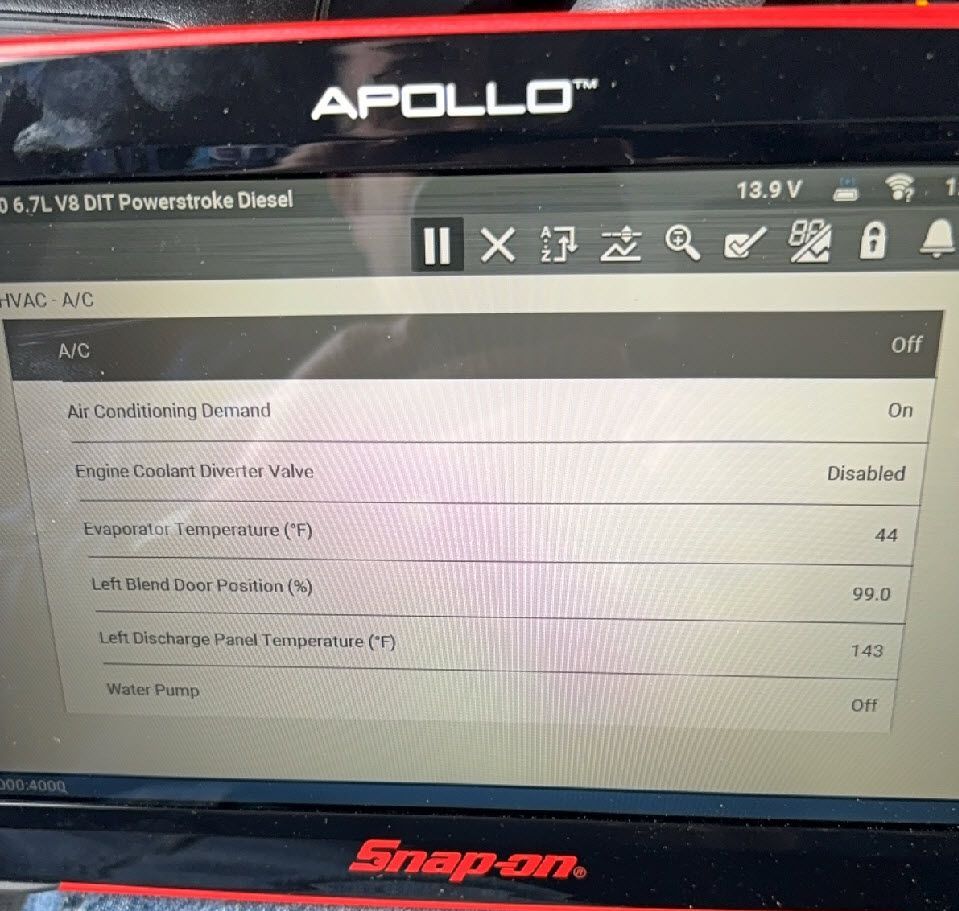

- Monitored live data for blend door positions and fan speeds
- Used diagnostic tools to check voltage and signals at the master control module
- Traced wiring and found grounded signal wires when the master switch was off
- Identified a logic issue with the control board
After careful testing, we determined the root cause was faulty wiring and connections at the control module. We repinned wires, added a fused circuit for constant power to the USB ports, and verified full functionality.
The Result
After the repair, the front and rear systems operated independently as designed, and the USB ports now provide constant power. The truck is back in service, fully comfortable for the crew even during long Oklahoma summer days.
This job perfectly illustrates why we emphasize proper diagnostics. A quick parts swap might have temporarily helped one symptom but would have left the underlying electrical issues unresolved.
Key Takeaways
- Modern trucks with upfitter packages often have complex electrical and HVAC systems
- Blend door and control module problems require thorough testing
- Proper repairs on new vehicles prevent repeat visits and downtime
- Choosing a shop that invests time in diagnostics saves money long-term
If your truck or fleet vehicle is having heating, cooling, or electrical gremlins, bring it to PROFIX Auto Repair in Norman. Our experienced team at both the West (Rambling Oaks) and East (Porter Ave) locations will diagnose and repair it correctly the first time.
We also offer flexible financing through Affirm and Sunbit for larger repairs.
Call us or book your appointment online today. Let’s keep your vehicles running reliably.
